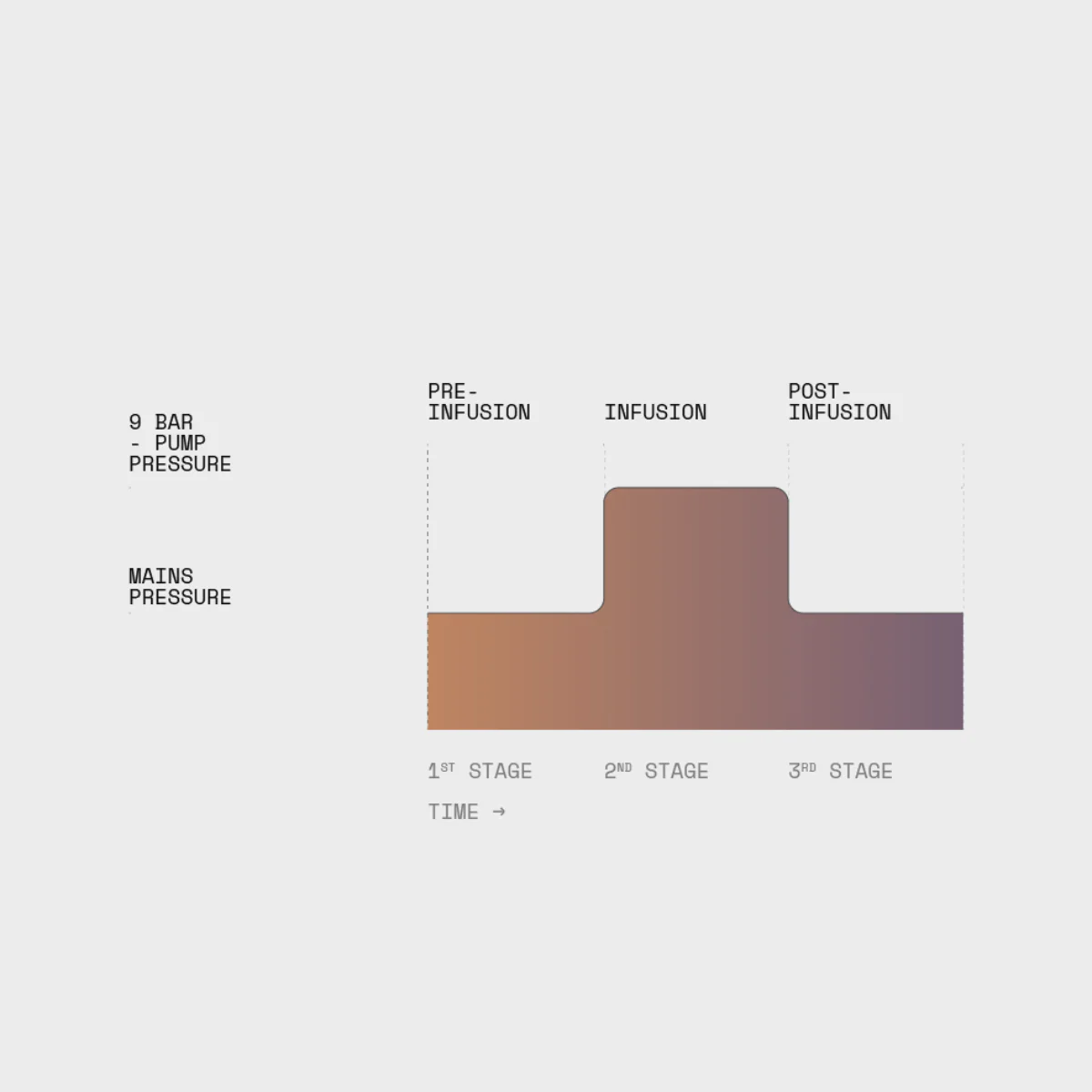

Pre-Infusion And Post-Infusion
With the Rancilio RS1 Multi Boiler Espresso Machine, baristas have the ability to adjust the water pressure in both the initial (pre-infusion) and final (post-infusion) stages of the extraction process. This allows for a choice between mains pressure or pump pressure and the duration of each stage can also be adjusted. By utilizing low-pressure water from the mains, baristas can achieve more consistent extractions, minimizing the chances of channelling and retaining soluble substances and aromas that may otherwise be lost with high-pressure over-extraction.
Advanced temperature profiling
Thanks to Advanced Temperature Profiling technology, among the most advanced multi-boiler technology for espresso machines, baristas can increase or decrease the temperature of the water dispensed during espresso extraction by up to 5°C (9°F). By accurately controlling the temperature profile of the espresso extraction, baristas are given a precise tool to unlock the flavour potential of each single-origin coffee or blend. By adjusting the temperature, variable results can be achieved in terms of sweetness, acidity, body, bitterness and astringency.
Rancilio RS1 Multi-Boiler Speciality Espresso Machine Catalogue

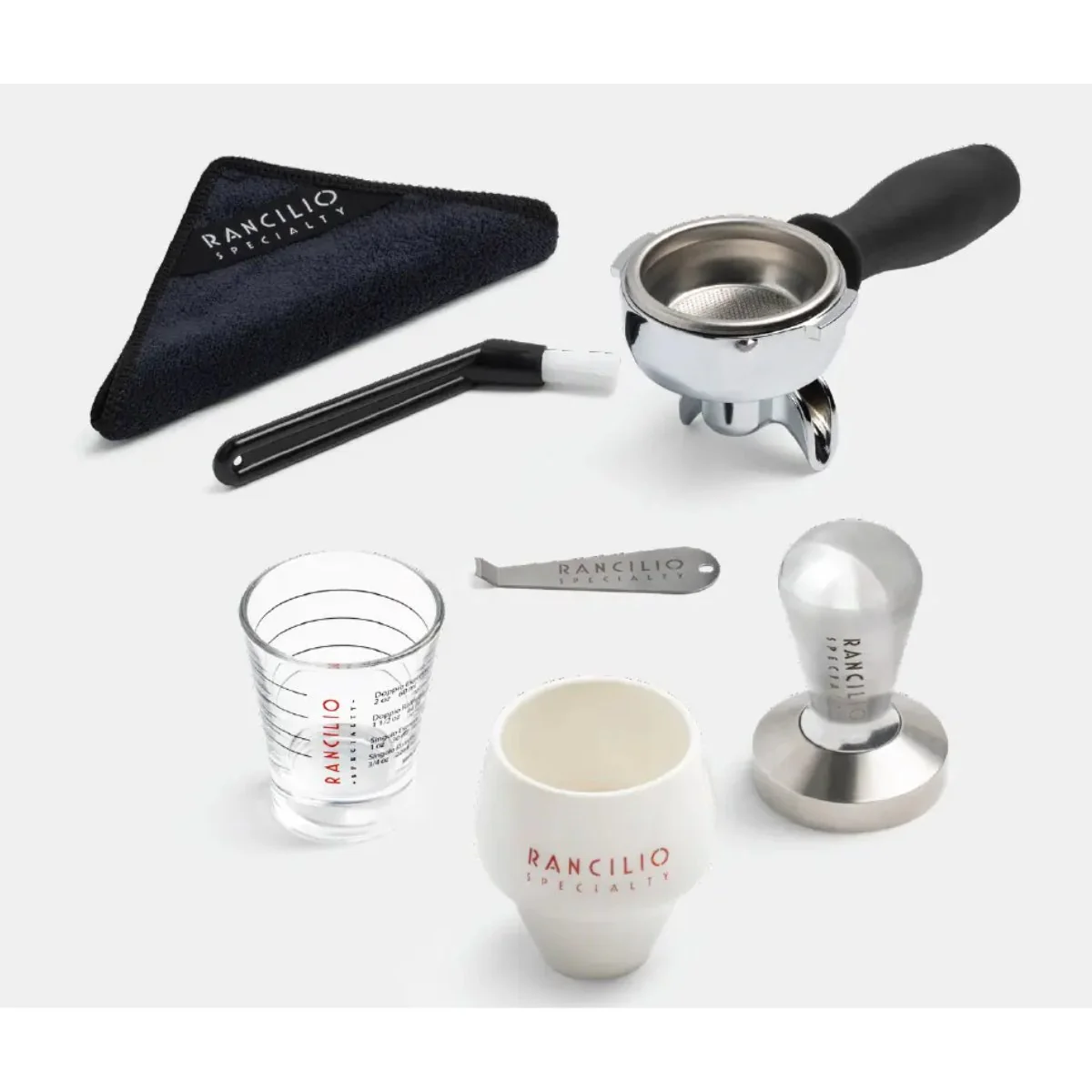

Also Included when you purchase this machine through Prime Coffee Suppliers:

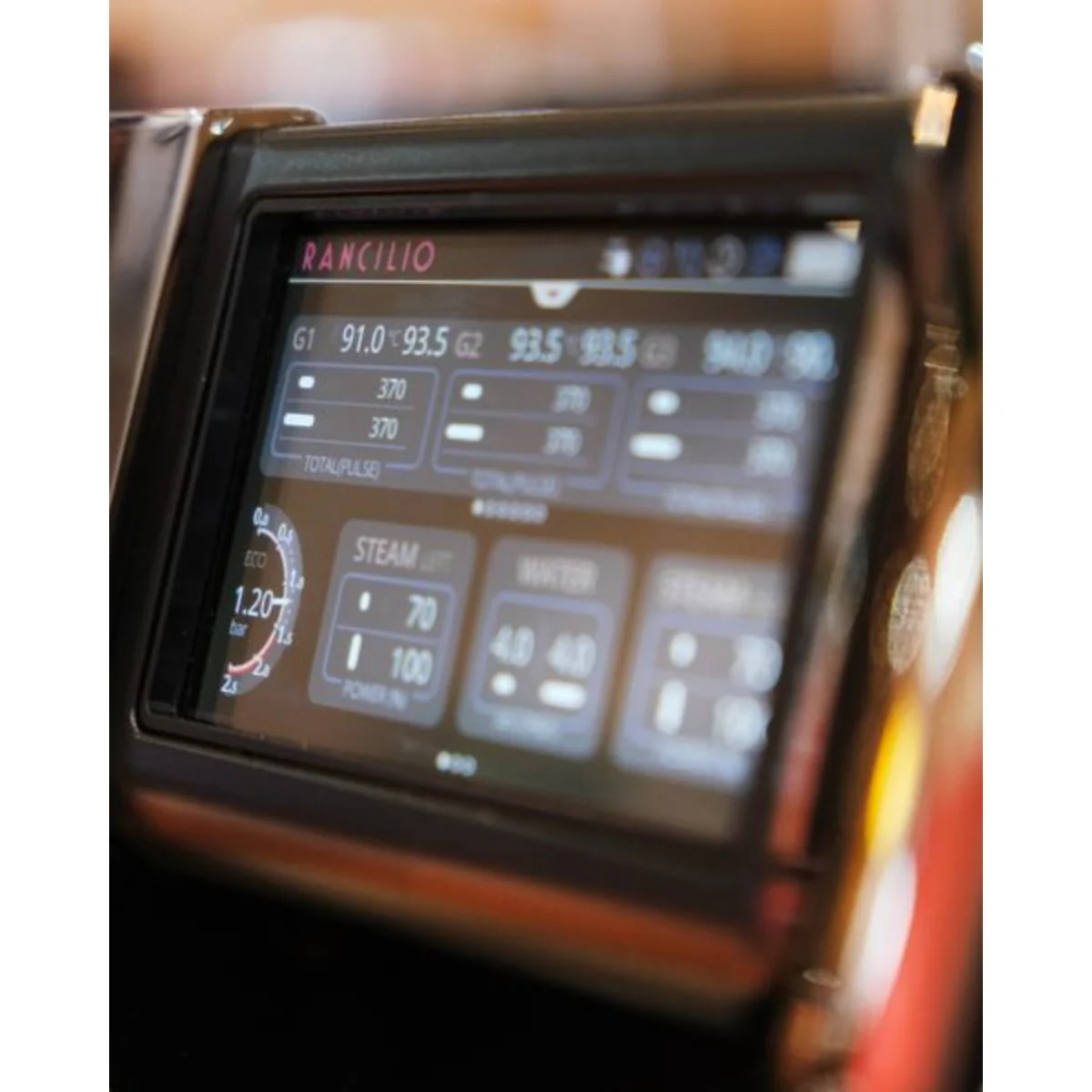

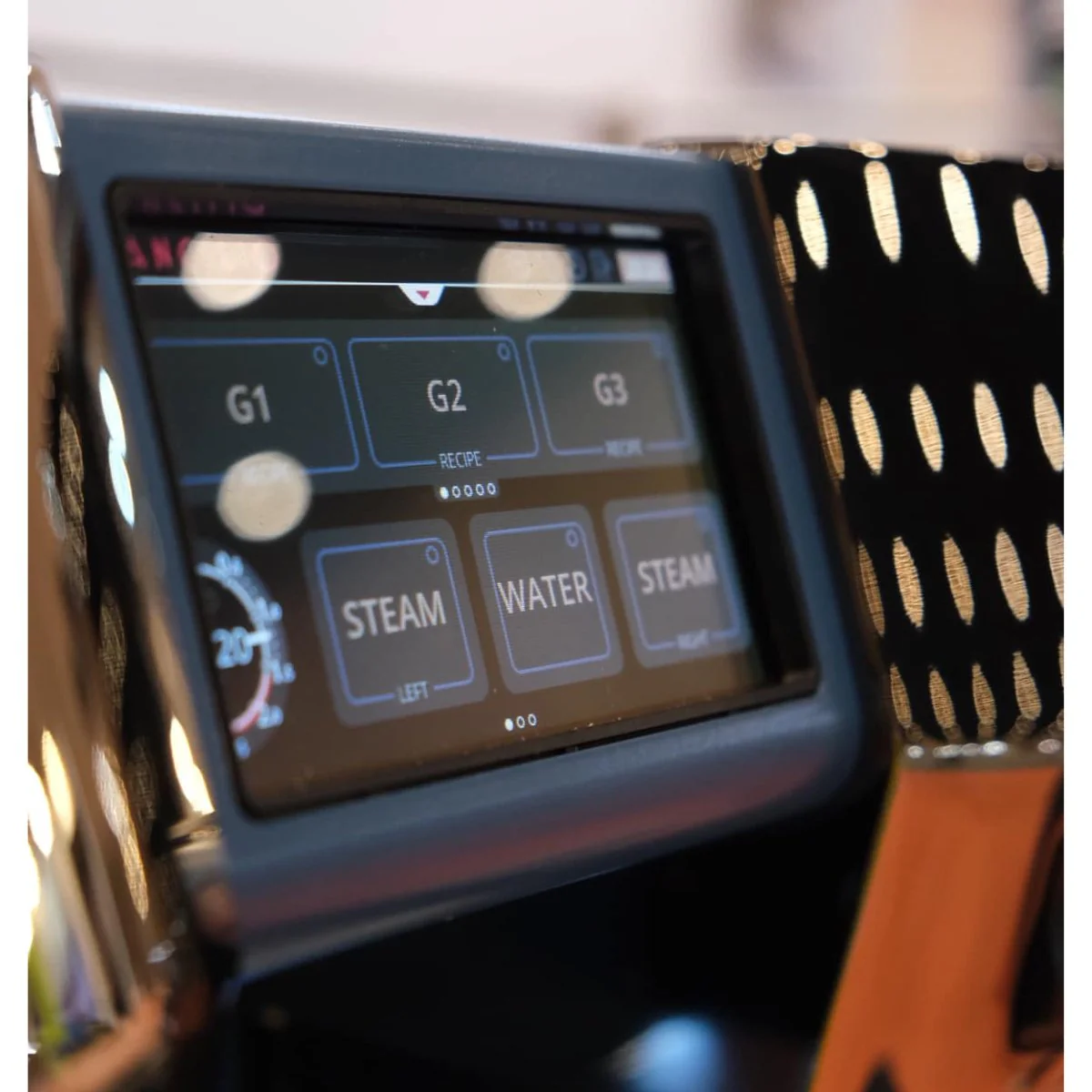

Touchscreen Interface: The digital touchscreen provides quick, intuitive access to all programming and machine functions.

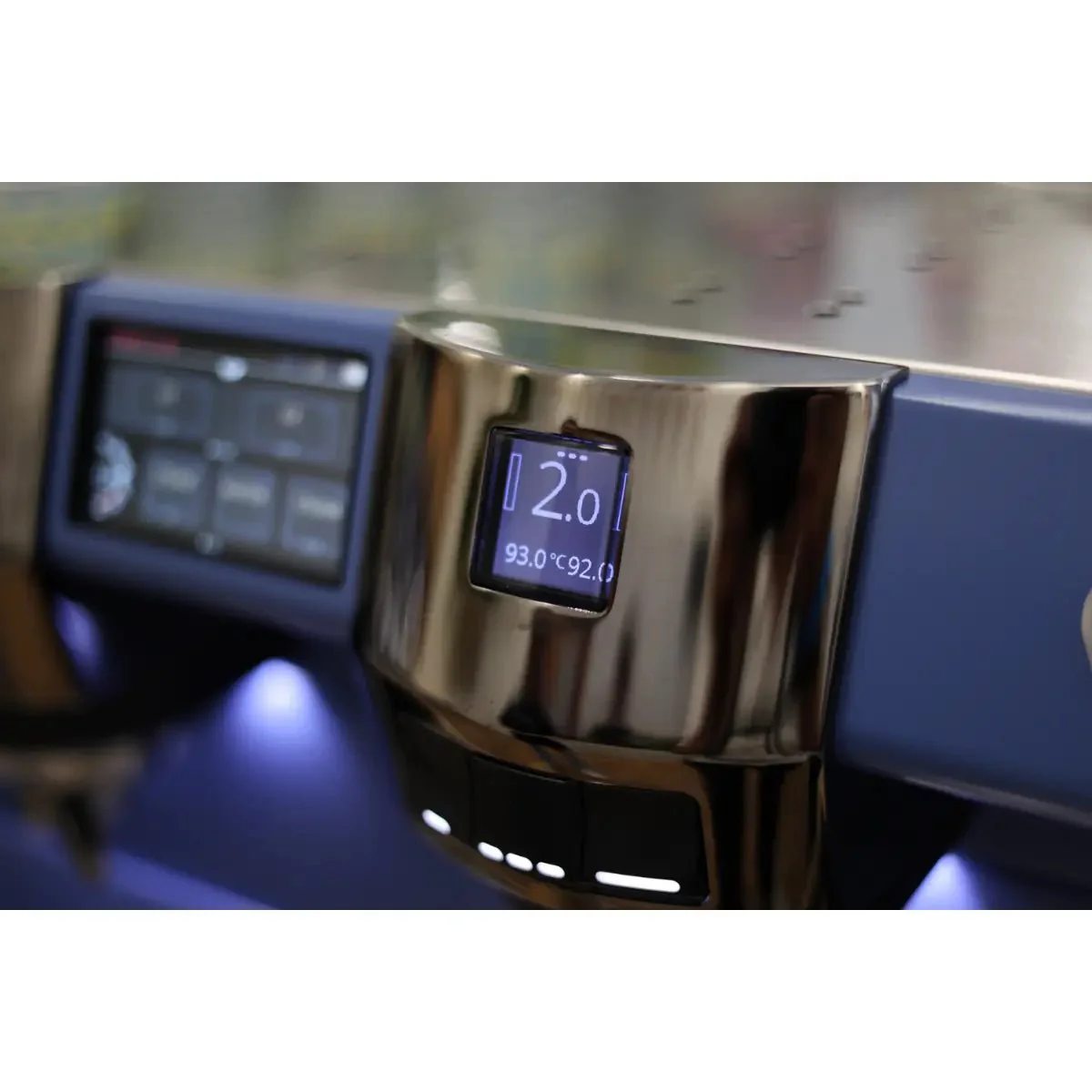

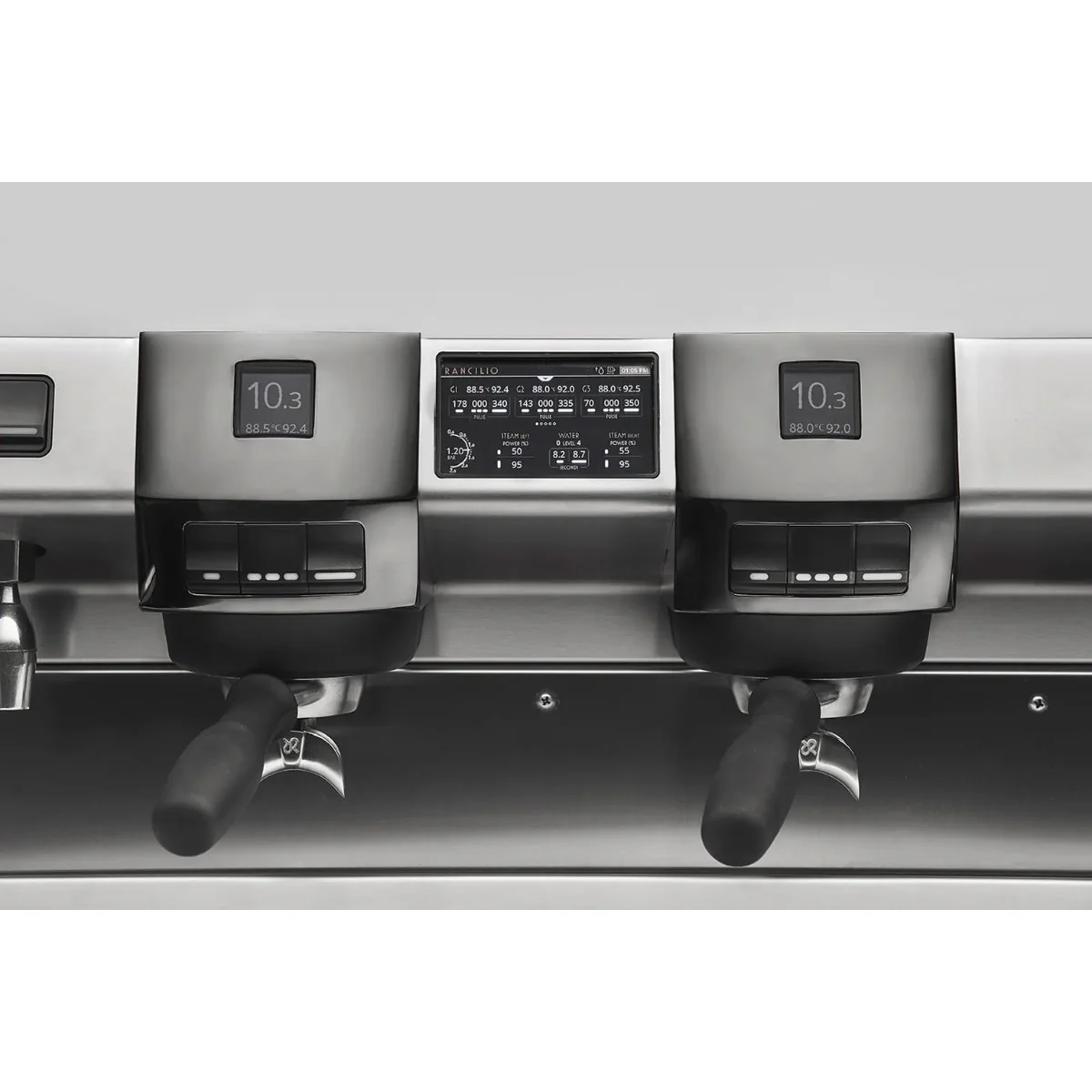

Digital Display (Per Group): Each group features a dedicated screen showing extraction temperature and shot time for precise control.
X-Tea (8 Levels): Two programmable hot-water buttons allow precise control of dosage and temperature directly from the touchscreen.
Auto On-Off: The machine can be programmed to turn on and off automatically for each day of the week.
Snap&Share: The QR-based system lets users share machine parameters, monitor usage and register products for warranty and maintenance tracking.

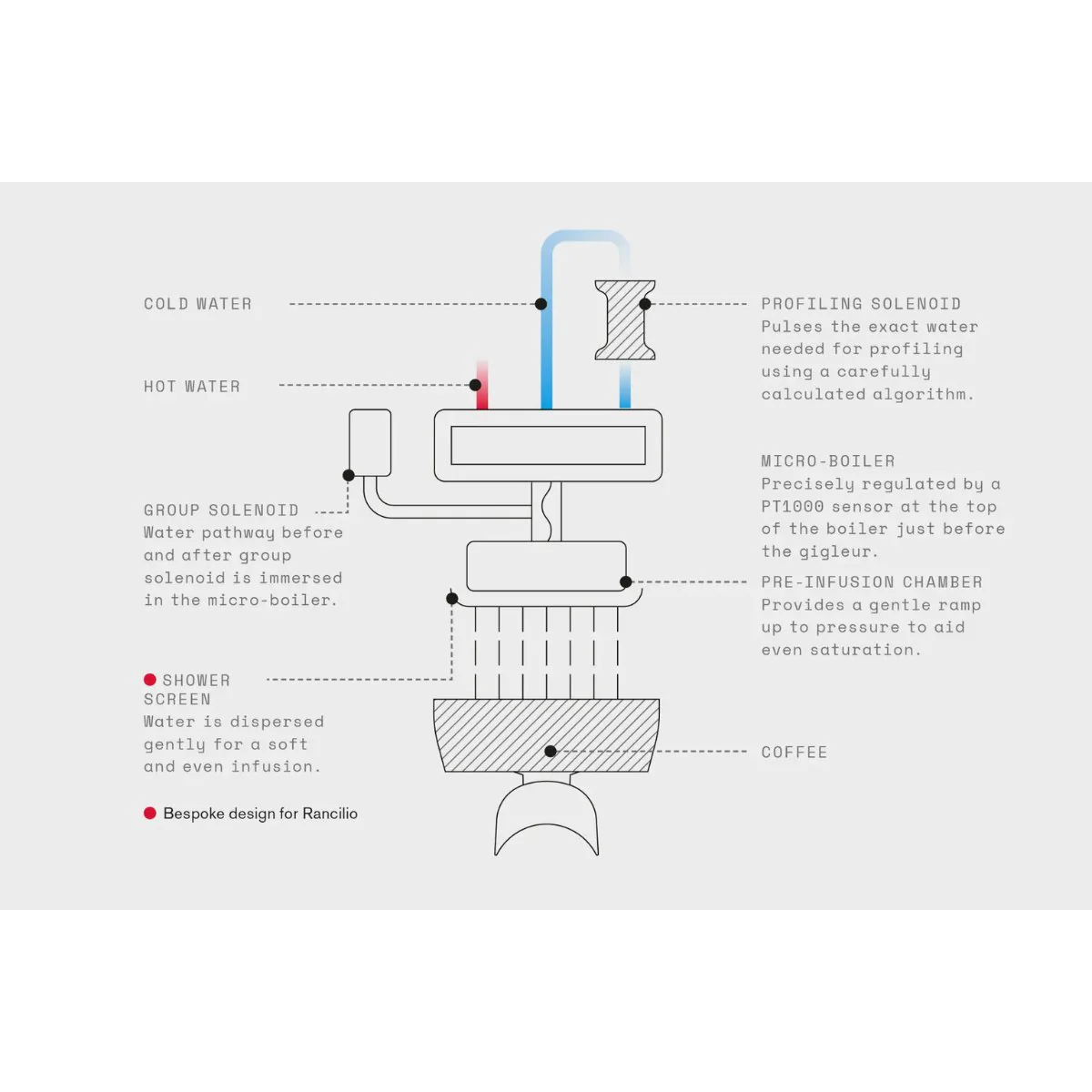

Multi-Boiler System: Every group contains its own micro-boiler and dual heating elements for maximum accuracy and thermal stability.
Advanced Temperature Profiling: Baristas can adjust water temperature by up to ±5°C during extraction to unlock different flavour profiles.
Pre-Infusion and Post-Infusion: Water pressure and timing can be customised in the first and final stages of extraction for better saturation and reduced bitterness.
ABM: Advanced Boiler Management stabilises temperature during heavy use and reduces power absorption when needed.
Insulated Boiler: The insulated steam boiler improves energy efficiency and maintains stable performance.
Cool Touch Steam Wand: The insulated steam wand stays cool during use and delivers uniform steam with minimal condensation.

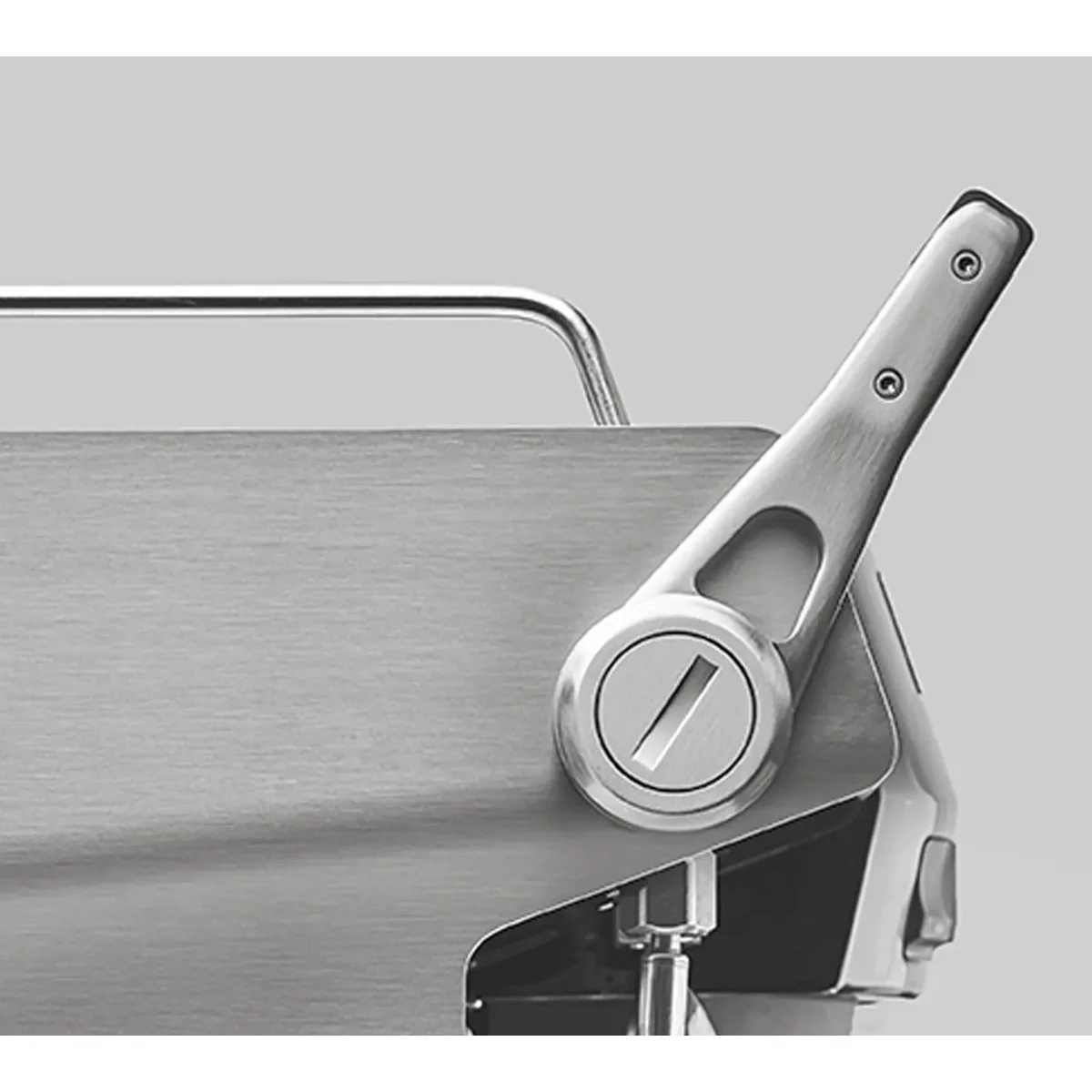

Variable Steam Lever: The steam lever offers two adjustable power levels plus a purge position for flexible milk steaming.
Cup Warmer (with Temperature Sensor): The built-in cup warmer distributes heat evenly and offers adjustable temperature levels.
Stainless Steel Ergonomic Portafilter: The stainless-steel portafilter with soft-touch handle provides balanced weight and smooth wrist movement.
Height-Adjustable Drip Tray: The drip tray can be set to 80, 100 or 120 mm to accommodate any cup size.

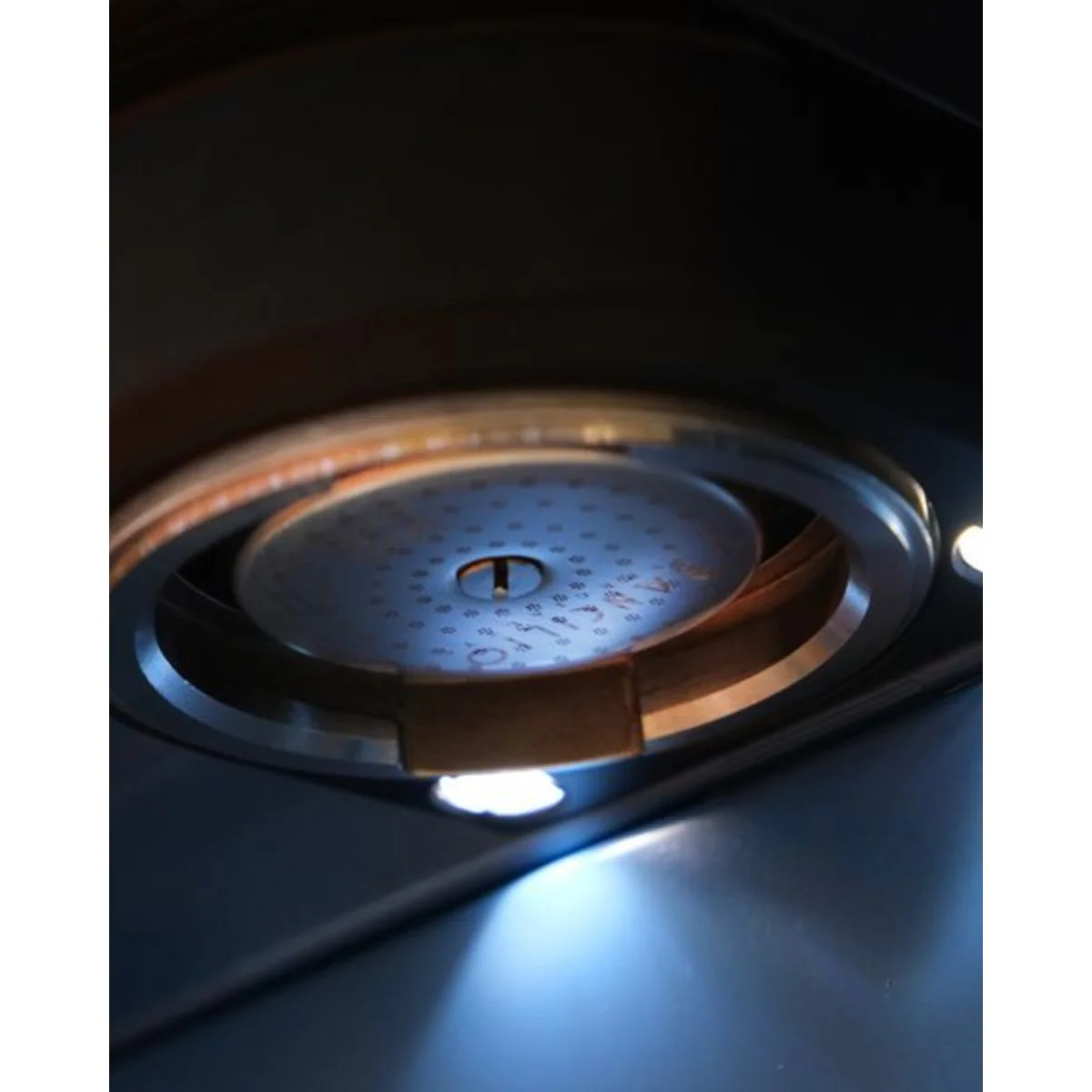

LED Lights (Work Area): The grouphead area is brightly illuminated by LEDs for optimal visibility during extraction.
Eco-Mode: Eco mode reduces power consumption by lowering energy use during quiet periods.
Easy Clean: Automatic group cleaning cycles can be activated from the touchscreen, with optional alerts and history logs.
Advanced Diagnostic: The service menu allows technicians to check pumps, solenoids, sensors and heating elements directly from the interface.
| 2GR | 3GR | |
|---|---|---|
| Dimensions (W × D × H) | 840 × 600 × 463 mm 33.07 × 23.62 × 18.23 in |
1084 × 600 × 463 mm 42.67 × 23.62 × 18.23 in |
| Weight | 95 kg / 209.4 lb | 110 kg / 242.5 lb |
| Boiler Capacity | 11 L / 2.4 gal (UK) | 16 L / 3.5 gal (UK) |
| Micro‑Boiler | 2 × 150 ml (300 W) | 3 × 150 ml (300 W) |
| Power Supply | 220–240 V~ / 380–415 V 3N~ 50–60 Hz |
220–240 V~ / 380–415 V 3N~ 50–60 Hz |
| Power Consumption | 5600 W | 6750 W |
| Water Supply | Water mains connection | Water mains connection |
| Drip Tray Height | 80* – 100 – 120 mm 3* – 4 – 5 in |
80* – 100 – 120 mm 3* – 4 – 5 in |
| Noise Level (during use) | < 70 dB | < 70 dB |

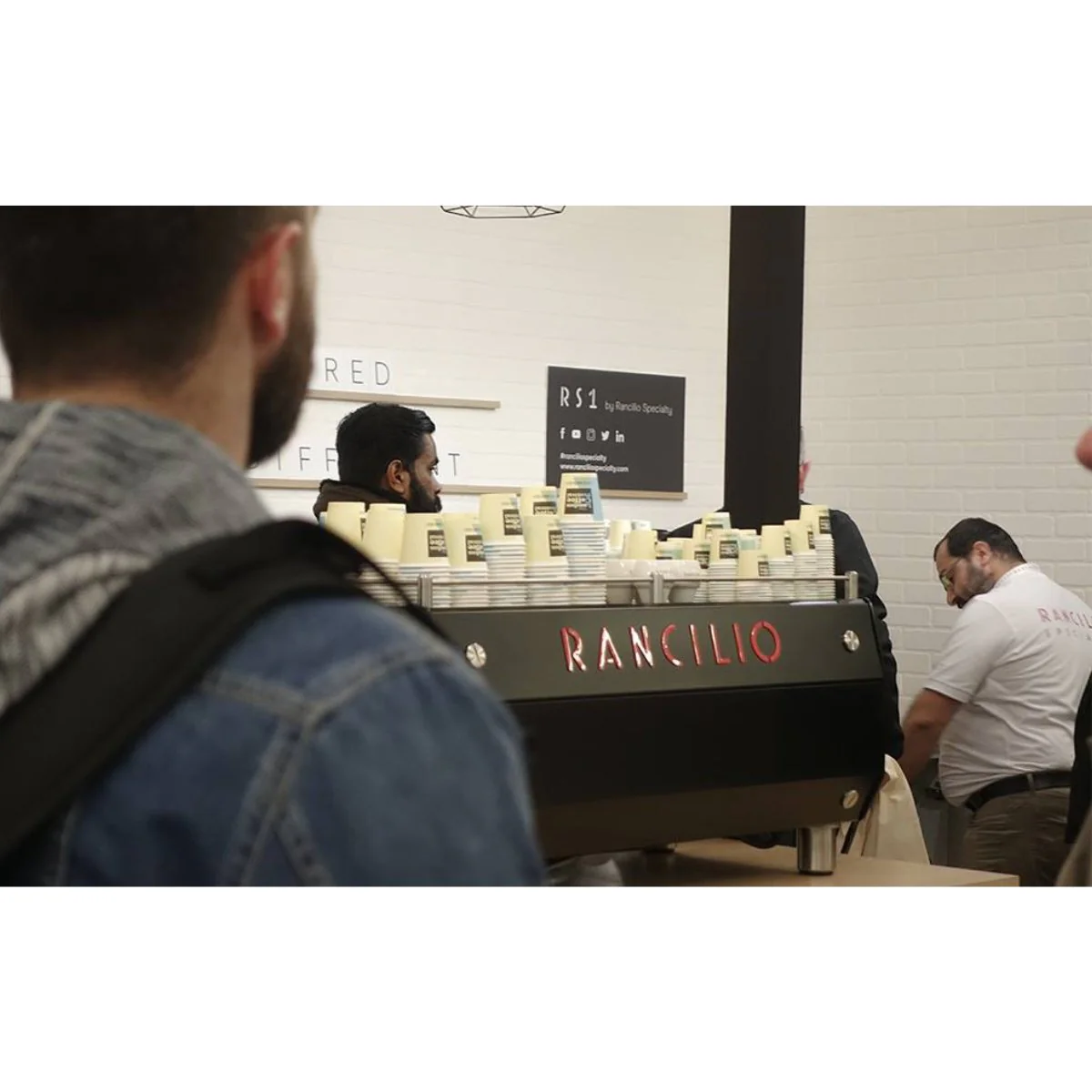

Prime Coffee Suppliers explored the vibrant halls of the Host Milan 2025 coffee convention, capturing standout machines in their finest form. Among them was the Rancilio RS1 11L Speciality Espresso Machine, showcased in a striking customised colourway that drew attention from every corner. Our photos bring to life the innovation, artistry, and personality expressed through each machine on display.
If you’re looking for a commercial espresso machine that can consistently elevate flavour, streamline barista workflow, and deliver long-term reliability, the Rancilio RS1 stands out as one of the strongest contenders in today’s speciality coffee market. Designed for cafés that demand accuracy in every cup, the RS1 combines cutting-edge brewing technology with intuitive controls and a durable stainless-steel build.
Master Temperature Control for Exceptional Coffee
One of the RS1’s most impressive features is its Advanced Temperature Profiling. This allows baristas to adjust extraction temperature by up to ±5°C, giving precise control over sweetness, acidity, and mouthfeel. For cafés that work with seasonal beans or premium single origins, this feature is a game changer, unlocking flavours that would otherwise remain hidden.
Consistent Results with Multi-Boiler Accuracy
The RS1’s multi-boiler system ensures unmatched thermal stability, even in peak service hours. Each group has its own micro-boiler, delivering consistent heat and pressure from shot to shot. This means your café can offer the same cup quality all day, no fluctuations, no surprises.
Designed for Baristas: Smooth Workflow, Faster Service
Beyond its brewing power, the RS1 is crafted to make every barista more efficient.
Key workflow features include:
Dedicated digital display per group showing shot time & temperature
Cool Touch steam wands for safe, comfortable milk texturing
Variable steam lever with two programmable steam levels
Height-adjustable drip tray for cups of all sizes
These upgrades reduce preparation time and help maintain smooth service even during busy periods.
Is the Rancilio RS1 Worth It?
The Rancilio RS1 is an excellent choice for cafés that aim to deliver a consistently high-quality coffee experience while improving barista workflow. With its temperature profiling, multi-boiler system, ergonomic design, and smart controls, it provides everything a modern speciality café needs to stand out. If you’re ready to invest in a machine that enhances flavour, speed, and long-term reliability, the RS1 is a machine worth considering for your coffee business.
Get to know your Rancilio RS1 quickly and confidently with this curated collection of training videos. Each clip focuses on a key feature of the machine, giving you practical guidance to help you operate, programme, and maintain it with ease. Perfect for new users and ideal as a quick refresher for experienced baristas.
How to Programme Group Volume: Learn how to customise the group volume to automate water output for each espresso shot. This gives baristas a consistent baseline and an extra layer of control when dialling in.
Overview of Steaming Functions: A walkthrough of the RS1’s steaming system, showing how to achieve stable texture, better microfoam, and more efficient milk preparation.
Running the RS1 Cleaning Cycle: Covers the full automatic cleaning process to keep your groups hygienic, efficient, and performing at their best.
Programming Hot Water Buttons: Shows how to set the RS1’s programmable hot water buttons, including custom time and temperature inputs for precise tea or americano preparation.
Self-Learning Mode: Explains how to activate and use Self-Learning Mode, allowing the machine to memorise the parameters of a manually pulled shot for future consistency.
Saving an Espresso Recipe: Guides you through saving and loading espresso recipes, ensuring your preferred profiles can be recalled instantly.
Steam Wand and Lever Overview: An overview of the steam lever and how to set the wand’s power percentages for improved workflow and customised steaming performance.
Setting a Temperature Profile: Shows how to programme temperature profiles for advanced control over flavour, extraction balance, and brewing precision.
The name "Rancilio" has become synonymous with quality espresso in the home and for good reason. With over 85 years of experience in Italy making espresso machines, Rancilio has applied their knowledge and expertise to become a benchmark name in home espresso equipment. Using the finest of materials Rancilio coffee machines reflect the brand's commitment to quality.
Original: $16,667.57
-65%$16,667.57
$5,833.65Product Information
